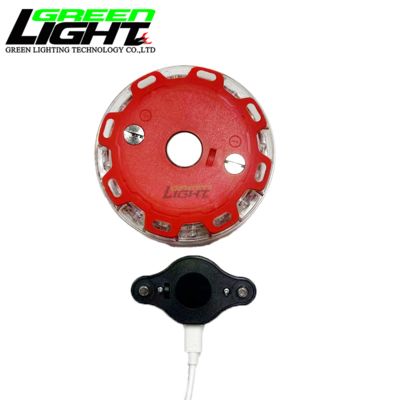

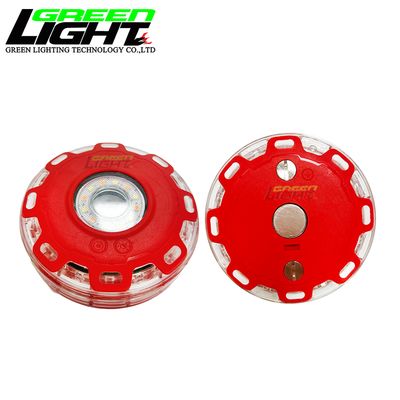

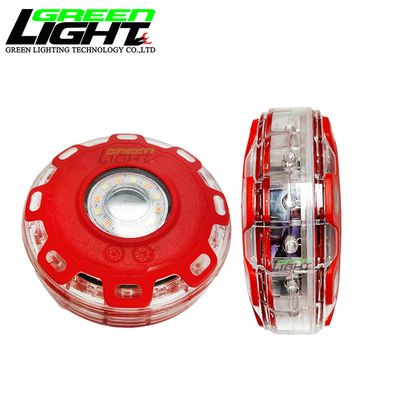

LED Road Flare - Flashing Warning Light with Multiple Colors and Lighting Modes
High-performance LED warning light featuring multiple color options and lighting modes. Designed with magnetic adsorption and rechargeable Li-ion battery for reliable operation in various conditions including underground mining environments.
Key Features:
- Built-in rechargeable Li-ion battery
- Multiple color options available
- Multiple lighting modes for different applications
- High protection grade: shatter-proof, crush-proof, waterproof, anti-explosive
- High visibility: 300m during day, 1000m in evening, 1600m in water
- Compact size and lightweight for easy carrying
- Magnetic adsorption capability

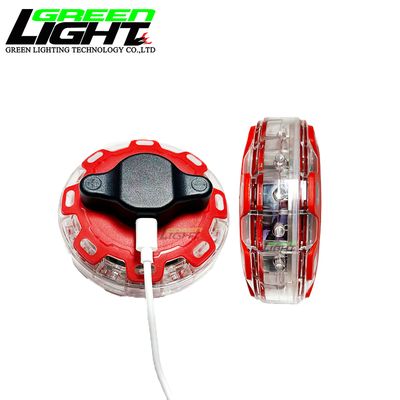

- Charging box available
Technical Specifications:
| Model |
GL-WF02 |
|
|
Side warn lighting |
Center work lighting |
| Light source |
16 LEDs single color |
12 white auxiliary lights |
| Light current |
7mA*16 LEDs=112mA |
60mA - 120mA - 180mA |
| Light modes |
Nine indications modes: Rotate - Double blink - Single blink - Alternate - SOS - Solid on (low) - Solid on (high) - 2 LEDs flash light - 4 LEDs flash light |
Three work lighting modes: Cold white - Warm white - Combination |
| Wave length |
R: 630 / G: 525 / B:465 |
|
| Luminous intensity |
R: 1500cd / G: 8000cd / B: 4000cd |
35 Lm - 60 Lm - 90 Lm |
| Brightness |
|
1500 Lux - 2200 Lux - 3000 Lux |
| Light power |
R: 1500cd / G: 8000cd / B: 4000cd |
0.25W - 0.45W - 0.67W |
| Working time |
100H |
40H - 20H - 15H |
| Materials |
PC + silicone |
| Storage temperature |
-20~+80 ℃ |
| Rated voltage |
3.7V |
| Battery capacity |
2600mAh rechargeable 18650 Li-Ion battery |
| Battery cycles |
1000 Cycles |
| Dimension |
105mm(Diameter) * 39mm(Height) |
| Weight |
236g |
| Charging current |
1.5A |
| Charging time |
2H |
| Waterproof grade |
IP68 |
About Green Lighting Technology Co., LTD (GLT)
GLT is an original manufacturer specializing in LED mining lights, explosion-proof flashlights, underground mining LED strip lights, charging racks, miner belts, and portable emergency power stations. Located in Shenzhen, we have a professional R&D team to support customized requirements and provide complete after-service. Our products have been sold to around 60 countries, with patents and certifications for several product inventions.
Our Services:
- OEM/ODM services available for special mining lamps (custom LOGO, color, appearance, function, structure)
- High quality products at competitive prices
- Custom product design tailored to your market requirements
- One year warranty on all products
Customization Options:
Appearance: Strong ID team can design product shape, pattern and color according to your market positioning and use conditions. Recent customizations include semi-corded, corded, cordless with tracking position and infrared receiver.
Electronic Circuit: Experienced engineers provide PCB design, LED drivers, charging circuits, battery protection circuits, and custom labeling (company name, LOGO, serial numbers).
Structural Design: Professional MD team delivers IP68 waterproof, ATEX explosion-proof, and dust-proof products with 17 years of underground field experience.
Optical Design: Custom light beam design based on LED luminous flux, light cup curve and current requirements.
Applications:
Packaging & Delivery:
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
A: Samples require 7-10 days, mass production requires 25-30 days.
Q3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for samples; MOQ FOB is 200pcs (depends on battery type).
Q4. How do you ship the goods and how long does it take to arrive?
A: We typically ship via DHL, UPS, FedEx or TNT, with delivery in 5-7 days.
Q5. How to proceed with an order?
A: Process: Inquiry → Confirmation → Proforma Invoice → Payment → Production → Shipping → Confirmation → Completion.
Q6. How to make payment?
A: We accept TT, Paypal, and Western Union.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for all products.
Q8. Do you accept OEM/ODM?
A: Yes, OEM/ODM services are available.
