LED Mining Lamps: Lightweight Durable Design with Explosion Proof and Waterproof Features
Rechargeable 10000lux LED Coal Miner Lamp IP67 Waterproof Mining Light designed for hazardous mining environments.
Product Overview

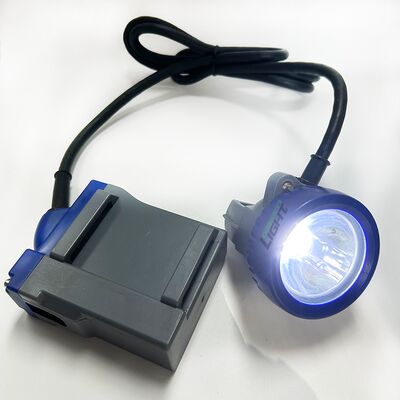

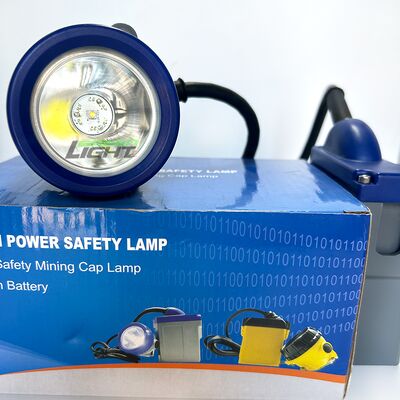

The T7 corded miner cap lamp features one 3W LED main light and two auxiliary LEDs, powered by a high-capacity 7.8Ah rechargeable Li-ion battery. Available with blue or yellow bezel rings, this lamp includes a press-type switch and connects to the battery case via a 1.65m mining cable. Designed for durability and safety, it offers strong brightness, extended lighting time, long lifespan, high intensity, and low usage cost at just 550g weight.
Key Features
- One main light and two auxiliary lights delivering 10,000-15,000 lux brightness
- 7.8Ah four-cell 18650 Li-ion battery pack - safe, reliable, compact, and lightweight
- One main light and six auxiliary lights with 1.6W main LED power at 450mA current
- Explosion-proof construction with strong impact resistance, waterproof (IP67), current shock proof, and impact proof
- Safety certified: EXia IIC4 (Zone 1) and CE certified for use in hazardous locations
- Comprehensive charging protection: anti-overcharging, current control, short circuit protection, and anti-overheating
Product Images
Technical Specifications
| Model No. |
GLT-7B |
| Light Source |
One main light, six auxiliary lights |
| Battery Capacity |
7.8Ah rechargeable Li-ion battery |
| Rated Voltage |
3.7V |
| Main Light Current |
450mA |
| Power of Main Light |
1.67W |
| Illuminous |
216 lum |
| Brightness |
15,000 lux |
| Life Span of Main Light |
100,000 hrs |
| Battery Cycles |
1,000 cycles |
| Working Time |
17 hrs |
| Weight |
420g |
| Water-proof Grade |
IP67 |
Manufacturer Profile
GREEN LIGHTING TECHNOLOGY CO., LTD specializes in manufacturing explosion-proof mining lamps with extensive experience in underground working lamp development and production. We focus on LED miner's cap lamps, charging devices, and safety anti-explosion products for the mining industry and related sectors. Our commitment to development and innovation ensures high-quality products, supported by our dedicated foreign business marketing department. We offer a wide range of intelligent and multi-functional mining cap lamps, along with OEM & ODM services tailored to client requirements.
Applications
Widely used in hunting, automobile shipbuilding industries, oil pipelines, cable interlayers, platform channels, pump houses, tunnel projects, mountain climbing, hiking, patrolling, mining, fire fighting, dockyards, and other hazardous locations.
Charging Instructions
Traditional Charging Method
- Connect the single charger to power supply or switch on the charger rack - indicator light turns green
- Connect cap lamp to charger by fixing brass pin (cathode) into the cap lamp clip hole
- Rotate head lamp 180° clockwise to ensure anode contact connects to metal base
- During charging with 1A single portable charger or intelligent charger racks, indicator light flashes green to red when battery reaches at least 90% charge
- Lamp can work over 16 hours continuously when charging stops at this point
- Rotate head lamp 180° anti-clockwise to remove from charger
- Indicator light turns red during active charging
- Indicator light flashes green only when battery is fully charged
Safety Precautions
- Do not shine directly into eyes - strong light may cause eye damage
- Check device functionality before each use
- Do not charge the lamp underground
- Keep lamp away from fire sources
- Do not disassemble lamp or repair battery parts yourself
- Avoid crashing and sticking the lamp
- Do not open or repair device without appropriate electrostatic protection
Packaging & Delivery
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
Samples require 7-10 days, mass production requires 25-30 days.
Q3. Do you have any MOQ limit?
Our MOQ EXW is 1 pc for samples; MOQ FOB is 200 pcs (depends on battery type).
Q4. How do you ship the goods and how long does it take to arrive?
We typically ship via DHL, UPS, FedEx or TNT, with delivery usually taking 5-7 days.
Q5. How to proceed with an order?
Process: Inquiry -> Confirmation -> Proforma Invoice -> Payment -> Production -> Shipping -> Confirmation -> Completion.
Q6. How to make payment?
Accepted methods: TT, PayPal, Western Union.
Q7. Do you offer guarantee for the products?
Yes, we offer one year guarantee for all products.
Q8. Do you accept OEM/ODM?
Yes, OEM and ODM services are available.
