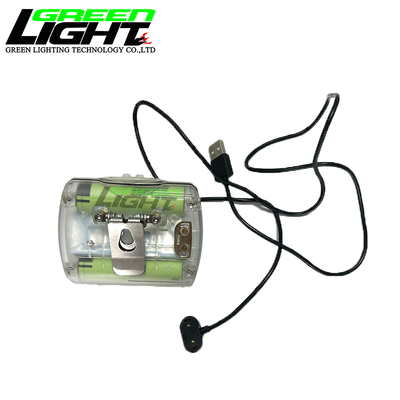

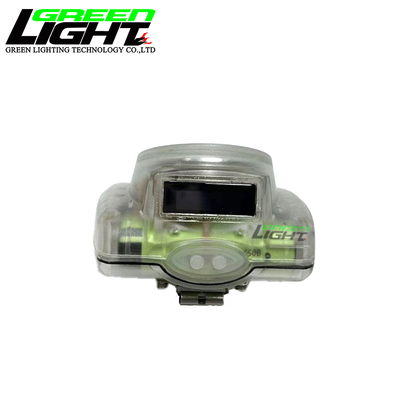

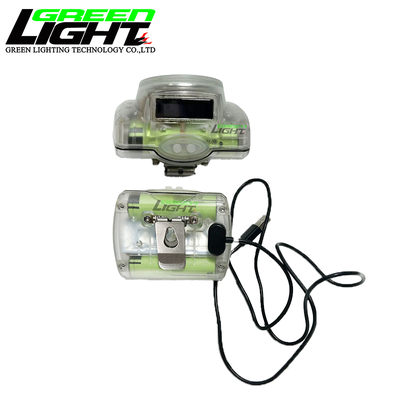

Heavy Duty LED Mining Lamps for Harsh Underground Environments
Advanced mining cap lamp with OLED screen and large lighting spot, designed for maximum brightness and safety in underground mining operations.
Key Features & Upgrades
- Separated silicon button switch with in-mold injection processing
- Highly permeable tempered lens for significantly increased brightness
- Complete front case with in-mold injection for enhanced waterproof performance
- Premium appearance design with upscale finish
- Robust construction with rubber coating process
- Super impact resistant design
- IP68 waterproof rating
- Plug & play cable replacement system
- Available for integrated RFID tagging and communications
Technical Specifications
| Model No. |
GLD-6 |
| Lighting Modes |
Low - Middle - High - Auxiliary - SOS |
| Light Source |
One main light, Two auxiliary lights |
| Battery Capacity |
13600mAh Li-ion battery pack 18650 |
| Rated Voltage |
3.7V |
| Main Light Current |
600mA - 800mA - 1100mA |
| Power of Main Strong Light |
1.05W - 2.3W - 4.07W |
| Illuminance of Strong Light |
150Lm - 350Lm - 530Lm |
| Brightness |
10000Lux - 20000Lux - 25000Lux |
| Life Span of Main Light |
100000H |
| Battery Cycles |
1200 cycles |
| Working Time |
20H - 14H - 10H |
| Weight |
610g |
| Water-proof Grade |
IP68 |
Manufacturer Profile
GREEN LIGHTING TECHNOLOGY CO., LTD is an expert manufacturer of explosion-proof mining lamps with over 15 years of experience in development and innovation. Our product range includes miner safety cap lamps, explosion-proof flashlights, LED high-power flashlights, LED search lights, and LED strip lights.
With excellent quality and reliable service, our products have captured consumer markets worldwide including South America, North America, Europe, Australia, South Africa, and the Middle East. We currently serve over sixty distributors across forty-four cities globally.
We are committed to providing competitive pricing, high-quality products, and punctual delivery to satisfy our valued customers. Our strict quality control processes and reputation for innovation have earned approval from global customers.
Our Services & Strengths
- OEM/ODM services for customized mining lamps according to your specific requirements (LOGO, color, appearance, function, structure)
- High quality products with competitive pricing
- Custom design services tailored to your market requirements
- One-year product warranty
Customization Options
Appearance
Strong ID team capable of designing product shape, pattern, and color according to market positioning and usage conditions. Customization options include semi-corded, corded, cordless designs with tracking position and infrared receiver capabilities.
Electronic Circuit
Experienced software and hardware engineers for PCB design and layout, including LED drivers, charging circuits, and battery protection circuits. Custom text capabilities for company names, logos, serial numbers, and user names.
Structural Design
Professional mechanical design team with 17 years of underground field experience, providing IP68 waterproof, ATEX explosion-proof, and dust-proof products.
Optical Design
Custom light beam design based on LED luminous flux, light cup curve, and current requirements.
Applications
Packaging & Delivery

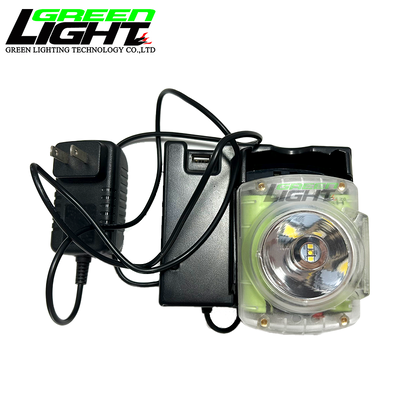

Each product is packaged in individual carton boxes containing:
- 1 mining headlamp
- 1 charger
- 1 user manual
- 1 package box
Shipping options include express delivery, sea freight, and air freight to meet your transportation needs.
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the lead time?
Samples require 3-5 days, mass production requires 15-20 days (depending on quantity).
Do you have any MOQ limit?
Our MOQ EXW is 1 pc for samples; MOQ FOB is 200pcs (depends on battery type).
How do you ship the goods and how long does it take to arrive?
We typically ship via DHL, UPS, FedEx or TNT. Delivery usually takes 5-7 days.
How to proceed with an order?
Inquiry → Confirmation → Proforma Invoice → Payment → Production → Shipping → Confirmation → Completion.
How to make payment?
TT, PayPal, Western Union.
Do you offer guarantee for the products?
Yes, we offer a one-year guarantee for all products.
Do you accept OEM/ODM?
Yes, OEM and ODM services are available.
