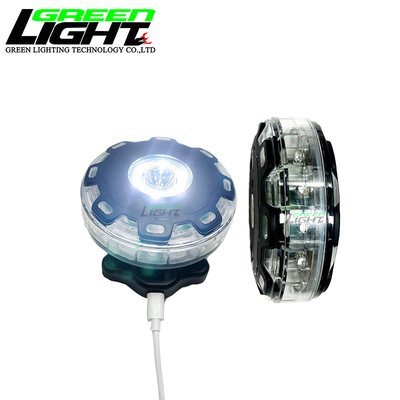

Compact Ergonomic LED Mining Lamps
Designed for comfortable wearability and optimal performance in confined mining work areas, providing reliable illumination and safety features.
Product Overview
Safety multi-function LED work light with flashing warning lights and IP68 protection rating, engineered for demanding mining environments.
Key Features
- Built-in rechargeable Li-ion battery with 3400mAh capacity
- RGB side warning lights and center strong white working lights
- Multiple lighting modes for different applications
- High protection grade: shatter-proof, crush-proof, waterproof, anti-explosive
- High visibility: 300m during day, 1000m in evening, 1600m in water
- Compact size and lightweight (241g) for easy carrying
- Magnetic adsorption capability
- Optional charging box available
Product Images
Technical Specifications
| Model |
GL-WF03 |
| Feature |
Side Warning Lighting |
Center Work Lighting |
| Light source |
16 LEDs F5 RGB |
1 main light + 12 auxiliary lights |
| Light current |
7mA*16 LEDs=112mA |
200mA - 400mA - 60mA-120mA |
| Light modes |
Ten indication modes: Rotate, Double blink, Single blink, Alternate, SOS, Solid on (low), Solid on (high), Red/blue alternate, Red/green alternate, Blue/green alternate |
Four work lighting modes: Main light Weak, Main light Strong, Auxiliary lights cold white, Auxiliary lights warm white |
| Wave length |
R: 630 / G: 525 / B:465 |
|
| Luminous intensity |
R: 1500cd / G: 8000cd / B: 4000cd |
100 Lm - 195 Lm - 35 Lm - 60 Lm |
| Brightness |
|
2500 Lux - 6000 Lux - 1500 Lux - 2200 Lux |
| Light power |
0.08W |
0.74W - 1.5W - 0.25W- 0.45W |
| Working time |
80~100H |
15H - 7H - 55H - 25H |
| Materials |
PC + silicone |
| Storage temperature |
-20~+80 ℃ |
| Rated voltage |
3.7V |
| Battery capacity |
3400mAh rechargeable Li-Ion battery |
| Battery cycles |
1200 Cycles |
| Dimension |
105mm(Diameter) * 39mm(Height) |
| Weight |
241g |
| Charging current |
1.5A |
| Charging time |
3H |
| Waterproof grade |
IP68 |
Manufacturer Information
Green Lighting Technology Co., LTD (GLT) is an original manufacturer specializing in LED mining lights, explosion-proof flashlights, underground mining LED strip lights, charging racks, Miner belts, and portable emergency power stations. Our company is located in Shenzhen, and we have a professional R&D team to support customers' special customized requirements, providing complete after-service. Our products have been sold to around 60 countries, and we have obtained patents and certifications on the invention of several products.
Our Services
- OEM/ODM services available (LOGO, color, appearance, function, structure customization)
- High quality products with competitive pricing
- Custom product design based on market requirements
- One year product warranty
Customization Options
Appearance: Custom product shape, pattern and color based on market positioning
Electronic Circuit: Custom PCB design, LED drivers, charging circuits, and battery protection
Structural Design: IP68 waterproof, ATEX explosion-proof, dust-proof solutions
Optical Design: Custom light beam design based on LED luminous flux and requirements
Packing & Delivery
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
A: Sample needs 7-10days, mass production time needs 25-30days.
Q3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q6. How to make this payment?
A: TT, Paypal, Western Union.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q8. Do you accept OEM/ODM?
A: Yes, it's available.
